Mortising Machine Shop Fox 3/4 Hp Hvy Duty Benchtop W1671 775.00 Value - $279 (bloomington)
QR Code Link to This Post

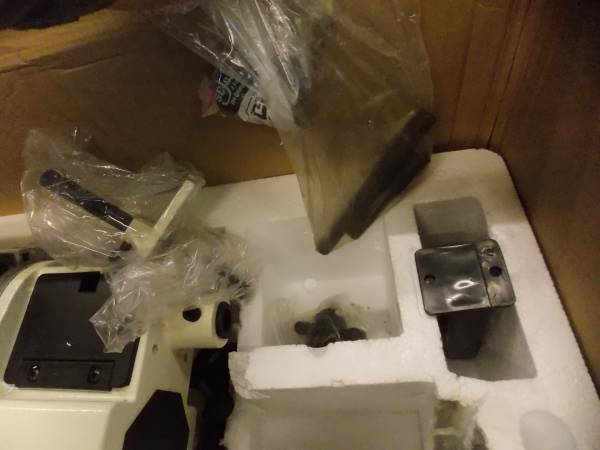

Yes, the second box is missing. I guess they ship these new in two different boxes and when they get separated you need to track-down the other box to make a complete unit. Lucky thing here is? This is the expensive complete "Box #1" . If a person has patients, generally every month or/so a Box #2 will show-up on ebay for cheap. Then you have a complete unit for much less than MSRP cost.
Shop Fox 3/4 HP Heavy-Duty Benchtop Mortising Machine
This king of benchtop mortisers is a rugged, high-quality machine with all the features found in the best mortisers made, but with none of their faults. The super heavy-duty fence and hold down eliminate unwanted wood movement and “sticking chisels,” (an all too common complaint), ensuring accurate and fast operation. The unique swiveling base allows easy off-the-bench operations and opens new possibilities for custom mortises. The precision 1/2" chuck eliminates the need to modify chisels and bits, and the extra height capacity allows the use of stock up to 7-3/8" thick. The all-steel quick-adjust depth stop is easy to set and provides a positive stop for repeatable operations. With features like an adjustable length, solid-steel quick-positioning handle, 8-piece tool holder, easy two-door chuck access, large base, and twin hardened-and-ground columns, you’ll see why this is one of the most popular mortising machines on the market!
SPECIFICATIONS:
Motor: 3/4 HP, 110V, single-phase, 8A
Maximum stock width: 8"
Maximum stock thickness: 7-3/8"
Maximum mortising depth: 4-1/2"
Maximum chisel travel: 4-3/4"
Spindle taper: JT #2
Spindle speed: 3450 RPM
Collar size: 5/8", 3/4"
Table dimensions: 16" W x 6" L x 3/4" T
Chuck: 1/2"
Overall dimensions: 16" W x 16" D x 29-1/2" H
Approximate shipping weight: 92 lbs.
