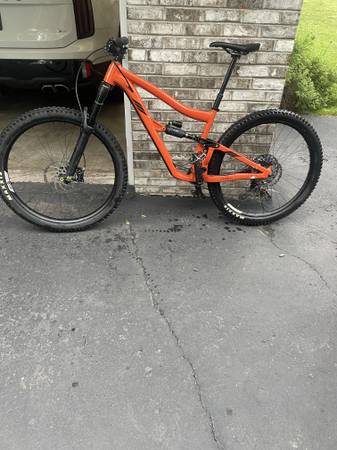

2022 Ibis Ripmo AF - SLX -size large - $2,075 (Duluth)
bicycle type:
mountain
wheel size:
29 in
bicycle frame material:
aluminum
suspension:
frame and fork (full suspension)
brake type:
disc (hydraulic)
condition:
good
make / manufacturer:
Ibis
model name / number:
Ripmo
QR Code Link to This Post
Wheel Size
29"
Frame Material
Aluminum
Frame Material Details
Molded chainstay and seatstay protection
Rear Travel
147mm
Rear Shock
DVO Topaz T3 Air, 210mm x 55mm
Optional upgrade: DVO Jade X Coil
Fork
DVO Onyx D1
Fork Travel
160mm
Head Tube Diameter
Tapered, 1.125" top, 1.5" bottom
Headset
Cane Creek 40, ZS44 upper, ZS56 lower
Handlebar
Ibis aluminum, 780mm width, 4° upsweep, 9° backsweep, 20mm rise
Stem
Ibis, 31.8mm bar clamp
Length: 40mm (SM/MD), 50mm (LG/XL)
Grips
Lizard Skins Charger
Brakes
Shimano SLX M7120, 4-piston, Shimano RT66 rotors (200mm front, 180mm rear)
Brake Levers
Shimano SLX M7120
Drivetrain
1x
Shifters
Shimano SLX M7100, 12-speed
Front Derailleur
None
Rear Derailleur
Shimano SLX M7100, 12-speed, SHADOW RD+
ISCG Tabs
Optional removable ISCG05 adapter available
Chainguide
None
Cranks
Shimano SLX M7100, 24mm spindle
Length: 170mm (SM/MD), 175mm (LG/XL)
Chainrings
Shimano SLX M7100, 32 tooth, alloy
Bottom Bracket
Shimano SLX BB52, 73mm BSA threaded
Pedals
None
Chain
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Rims
Ibis S35 aluminum
Hubs
Ibis, 110x15mm Boost front, 148x12mm Boost rear with MICRO SPLINE driver
Spokes
Ibis wheelset
Tires
Maxxis Assegai, EXO+ casing, 120 TPI, 29” x 2.5” WT
Saddle
WTB Silverado, 142mm width
Seatpost
BikeYoke Revive dropper (250lb rider weight limit)
Drop: 125mm (SM), 160mm (MD), 185mm (LG/XL)
Seatpost Diameter
31.6mm
Seatpost Clamp
Standard single bolt
Rear Dropout / Hub Dimensions
148x12mm Boost
Max. Tire Size
29" x 2.6"
Bottle Cage Mounts
One inside front triangle
Colors
Metal, Red Savina
Warranty
7 years frame, rims, and Ibis handlebars; 1 year paint and finish; lifetime pivot bushings
Weight
N/A
Miscellaneous
dw-link suspension design
Post-mount rear brakes, 203mm max rotor
Internal cable routing
Coil-shock compatible
Frame weight: 8.25 lbs / 3.74 kg (size MD with DVO Topaz Air)
Price
$4,299.00
