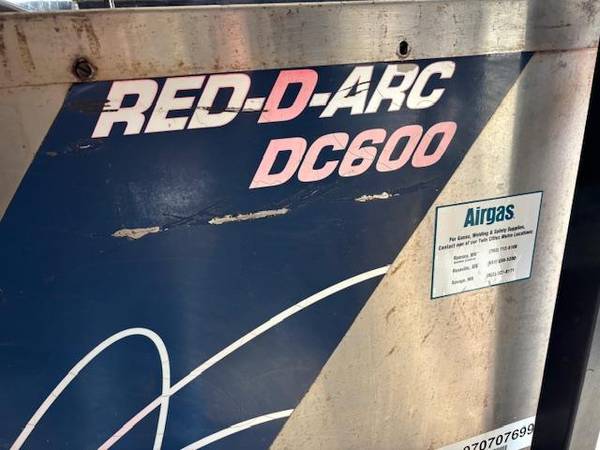

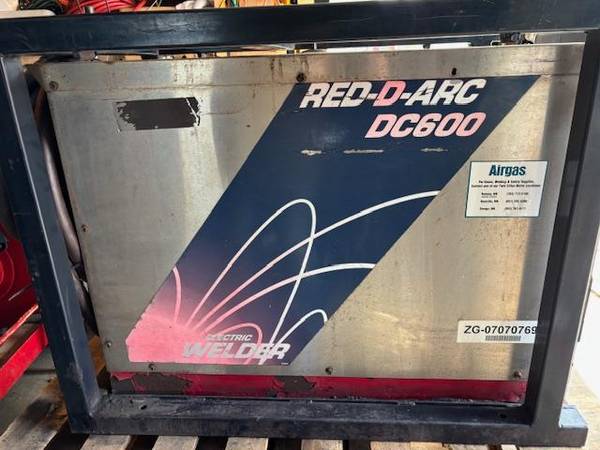

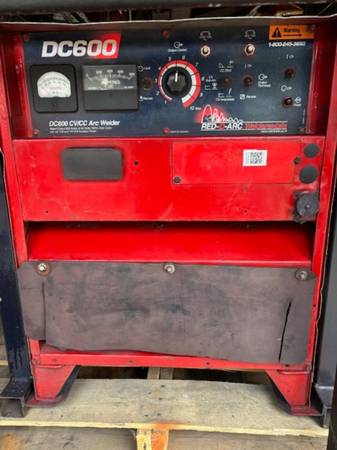

Lincoln Multi-Process Welder, Red-D-Arc DC-600 - $1,000 (Duluth, MN)
condition:
good
make / manufacturer:
Lincoln
QR Code Link to This Post
New MSRP $12,999
PROCESSES
• DC Stick (SMAW)
• Scratch Start DC TIG (GTAW)
• DC TIG (GTAW) with optional K930-2 TIG MODULE
• MIG (GMAW) up to 600 amps DC at 44 volts and 100% duty cycle
• Self-shielded and gas-shielded flux-cored (FCAW-SS / FCAW-GS)
• Submerged Arc (SAW)
• Air Carbon Arc Cutting and Gouging (CAC-A) up to 3/8" (10 mm) diameter electrodes
• Operates with voltage sensing wirefeeders, 42 and 115 volt constant speed wirefeeders, Spool Guns
and Cobramatic™ wirefeeders, automatic wirefeeders (NA3, NA5) and sub-arc tractors (LT7, LT56)
FEATURES
• Extreme-Duty™ stainless steel construction for operation in harsh environments
• outstanding arc characteristics on both constant current and constant voltage processes
• windings and rectifiers protected against moisture and corrosive environments
• full range output current/voltage potentiometer for easy operation and precise tool control
• solid state circuitry provides extra long life for repetitive welding applications

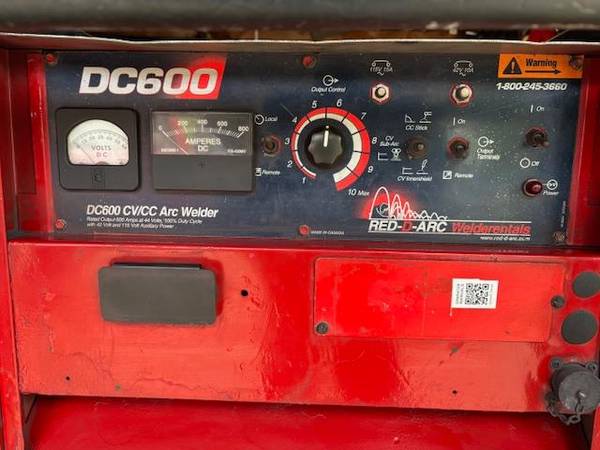

• ammeter and voltmeter for viewing weld parameters
• three position mode switch (CC Stick, CV MIG/FCAW, and CV Submerged Arc) for optimal arc characteristics
• line voltage compensation for constant output regardless of input power fluctuations up to +
- 10%
• fan cooled with electronic and thermostatic protection from current overload and excessive temperatures
• terminal strip connections for remote control and wirefeeders
• heavy duty push button on/off control with pilot light
• can be paralleled for up to 1,200 amps at 100% duty cycle of welding power (paralleling kit required)
• 3 year warranty on parts and labor
• certified to ISO requirements, CSA approved
• rugged tubular Pak-Lok-Frame™ enclosure for increased protection
• can be assembled with Pak-Lok™ connectors into 4Pak™ and 6Pak™ multioperator systems with
single source power output ideal for onsite applications including construction and shipbuilding
• 115 VAC 15 amps auxiliary power, duplex receptacle (1)
• fuse protected 42 VAC 10 amp auxiliary power circuit with MS connection
for 42 VAC wirefeeders (1)
• fuse protected 115 VAC 15 amp auxiliary power circuit with MS and terminal strip connections
for 115 VAC wirefeeders and 15 amp duplex receptacle for power tool operation (1)
• can be combined with other types of welders in Selecta-Paks™ for a range of welding and cutting capabilities
• optional shop cart connects to Pak-Lok-Frame™ with Pak-Lok™ connectors
• optional Multiprocess Switch allows quick changing between processes
(1) Machine codes below #10663 do not have 42 volt auxiliary power, 115 VAC auxiliary duplex receptacle, or MS connections.
